Automatic Flute Laminator Machine

Automatic Flute Laminator Machine
Details:
1. Efficient automation
2. High accuracy
3. Strong adaptability to various materials
4. Easy to operate
5. Energy saving and environmental protection
6. Low maintenance cost
Send Inquiry
Download
Description
Technical Parameters
Machine introduction:



Automatic Flute Laminator Machine paper machines are divided into three types according to the model: completely manual operation, simple structure, semi-automatic and fully automatic. The structure, performance and price of laminating machines of different models are also completely different. What type of Automatic Flute Laminator Machine to choose for production mainly depends on the structure and characteristics of the factory's products. Reasonably arranging the appropriate machine for production is more beneficial to improving production efficiency and quality.

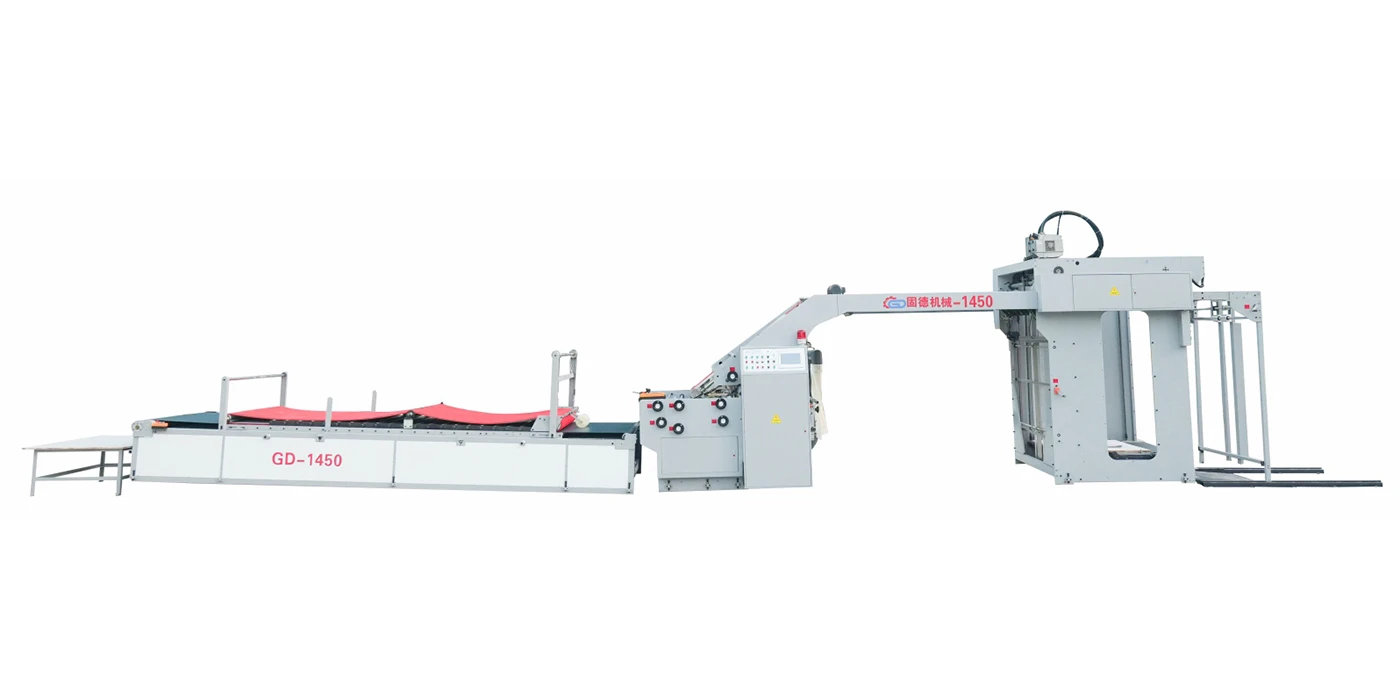

product-1400-700



Machine features:



1. Suitable for laminating 175-550g cardboard and corrugated paper;

2. Fully automatic glue replenishment system, combined with glue recycling;

3. The new concept is positioned in advance, and the bottom paper will never be ahead of the curve;



Machine details display:



product-536-377

Top Paper Feeding System

product-536-377

Glue Roller

product-536-377

Voltage Regulation Part

product-536-377

Bottom Paper Feeding

product-536-377

Feeder System

product-536-377

Electrical System



Delivery:



43





Hot Tags: automatic flute laminator machine, China automatic flute laminator machine manufacturers, suppliers, High Speed Pre Fold Manual Box Gluing Machine, Automatic Flute Laminating Machine, High Speed Carton Box Folder Gluer Equipments, Straight Line Automatic Gluing Machine, folder gluer, Straight Line Folder Gluer Machine

Technical parameter:



Models

GW-1450L

GW-1700L

GW-2200L

Max. paper size

W 1450mm * L 1450mm

W 1700mm * L 1650mm

W 2200mm *L 2100mm

Min. paper size

W 420mm * L 380mm

W 420mm * L 380mm

W 450mm * L 450mm

Bottom Paper Sheet Thickness

F -10mm

F -10mm

F -10mm

Max. Working Speed

16000Pcs/H (165M/Min)

16000Pcs/H (165M/Min)

16000Pcs/H (165M/Min)

Laminating Accuracy

±1.5mm Standard Sheet Paper

Applicable Glue

Resin adhesive, starch glue and etc (PH6~8 will be suitable for laminating glue)

Machine Weight

8000KG

8500KG

9000KG

Dimension (LxWxH)

L 16300mm * W2400mm *H 2550mm

L 17300mm * W 2650mm *H 2550mm

L 18500mm * W 3050mm* H 2880mm

Power Supply

380VAC/4P

380VAC/4P

380VAC/4P

Power

26KW

30KW

32KW

Applicable Corrugated Board

A, B, E, F, three-layer, 5-layer, and other deformed, warped corrugated papers
