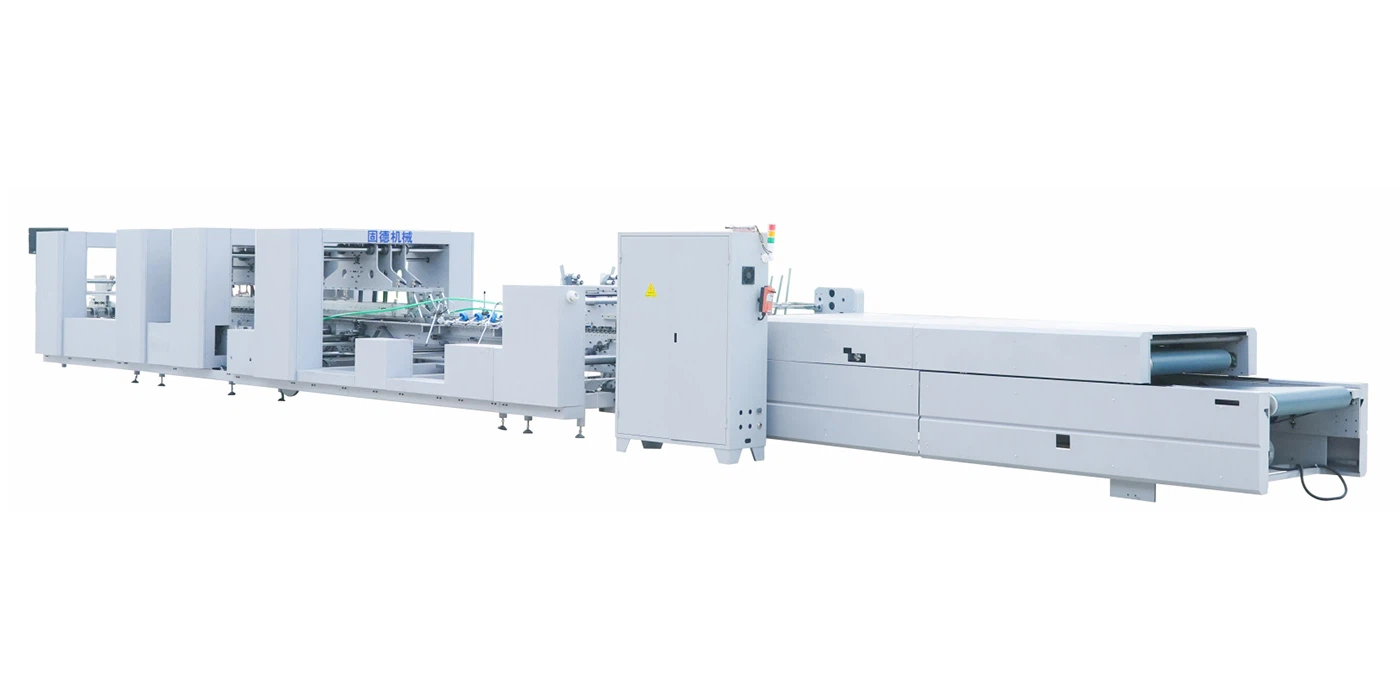

Machine introduction:
The automatic carton folding machine has a separate motor with independent frequency conversion. The telescopic adjustment of the upper and lower belts is simple and easy to operate.
Equipped with high-speed electronic kick counter. Multifunctional, can be used for straight, double-sided, pre-folded, bottom-locking boxes. It has high cost performance, lower cost and more box-type applications.
Suitable for cardboard and small fluted corrugated board
Machine features:
1.Multi-function machine can be used for straight, double-sided, pre-folded, and bottom-locking boxes.
2.The machine operation is simpler and the adjustment is convenient.
3.The machine is easy to operate and adjust.
Product Parameters
|
Model |
GSF-850 LB |
GSF-1100 LB |
GSF-1250 LB |
GSF-1450 LB |
|
Paper Material |
Cardboard 200-800g, A/B/E Corrugated |
|||
|
Speed Max |
400m/min |
|||
|
Total Power |
17kw |
19kw |
21kw |
23kw |
|
Length*Width*Height |
16*2.0*1.5m |
16*2.3*1.5m |
16*2.5*1.5m |
16*2.7*1.5m |
|
Weight |
7T |
9T |
10T |
11T |
|
Compressor Air |
6 bar |
6 bar |
6 bar |
6 bar |
|
Air Compressor Capacity |
6m³/h |
6m³/h |
6m³/h |
6m³/h |
|
Air Tank Capacity |
40L |
40L |
40L |
40L |
Box specification:
 |
 |
 |
 |
 |
 |
Box samples display:
Straight line box
Double sides box
Lock bottom box
Packaging:
Delivery:
Hot Tags: automatic carton folding machine, China automatic carton folding machine manufacturers, suppliers, Straight Line Automatic Gluing Machine, Fully Automatic Corrugated Flute Laminator, Flexo Folder Gluer Machine Straight Line, Automatic Folding Gluing Machine for Carton, Straight Line Folder Gluer Packing Machine, Automatic Carton Folding Gluer Machine
Technical parameter:
|
Model NO. |
GSF 1100LB |
After-sales Service |
Video Introduction |
|
Warranty |
1 Year |
Type |
Folder Gluer |
|
Automatic Grade |
Automatic Folder Gluer |
Driven Type |
Electric |
|
Packaging |
Film |
HS Code |
8441309000 |
|
Compressed Air |
6 Bar |
Air Tank Capacity |
40L |
|
Total Power |
19Kw |
Air Compressor Capacity |
6m³/H |
|
Max Speed |
400M/Min |
Machine Size |
16*2.3*1.5M |
|
Machine Weight |
9T |
Blank Width |
1100mm |
|
Materials |
Paperboard/Abcef/Corrugated Board |
Trademark |
GUDE |
|
Transport Package |
Steel Plate |
Origin |
MingGuang,AnHui,China |
