Machine introduction:
High Speed Carton Box Folder Gluer Machine adopting the sponge belt bottom feeding method, the elastically adjustable paper feed knife is combined with the vibration motor to smoothly and accurately separate the paper blanks. The clutch under photoelectric control controls the paper feeding transmission system to ensure that the paper blanks accurately enter the gluing part and achieve non-stop operation. Give paper.<br>
The imported hot-melt glue system under photoelectric control can be adjusted according to the size of the paper blank and the position of glue to meet production requirements.<br>
Machine features:
1.The machine has high productivity
2.The machine is easy to adjust
3.Equipped with an automatic belt tension adjustment system, the machine is easy to disassemble and assemble.
Product Parameters:
|
Model |
GSF-850 |
GSF-1100 |
GSF-1250 |
GSF-1450 |
|
Paper Material |
Cardboard 200-800g, A/B/E Corrugated |
|||
|
Speed Max |
400m/min |
|||
|
Total Power |
20kw |
22kw |
24kw |
26kw |
|
Length*Width*Height |
18*2.0*1.5m |
18*2.3*1.5m |
18*2.5*1.5m |
18.2.7*1.5m |
|
Weight |
8.5T |
10.5T |
11T |
11.5T |
|
Compressor Air |
6 bar |
6 bar |
6 bar |
6 bar |
|
Air Compressor Capacity |
10m³/h |
10m³/h |
10m³/h |
10m³/h |
|
Air Tank Capacity |
60L |
60L |
60L |
60L |

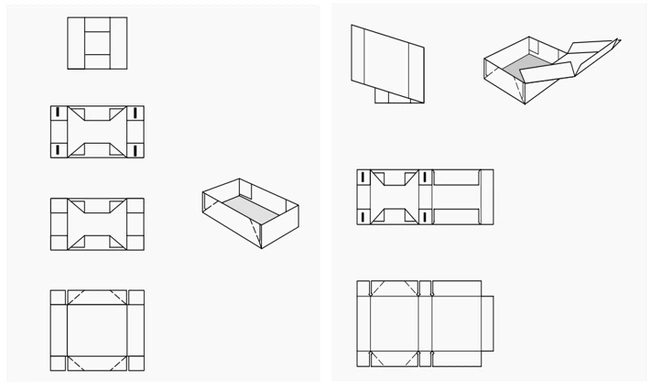

Box specification:
 |
 |
 |
 |
 |
 |

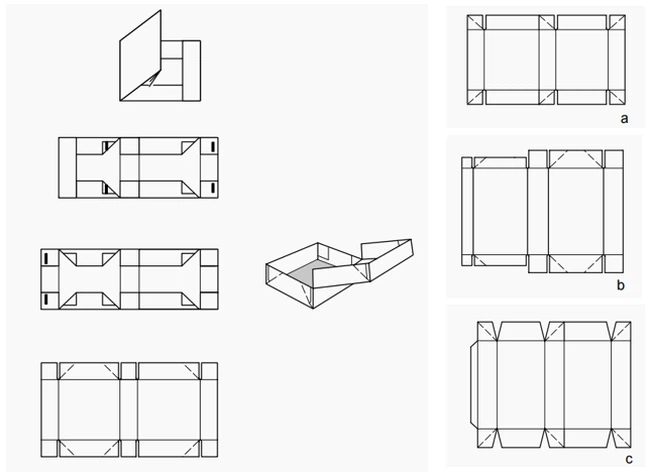

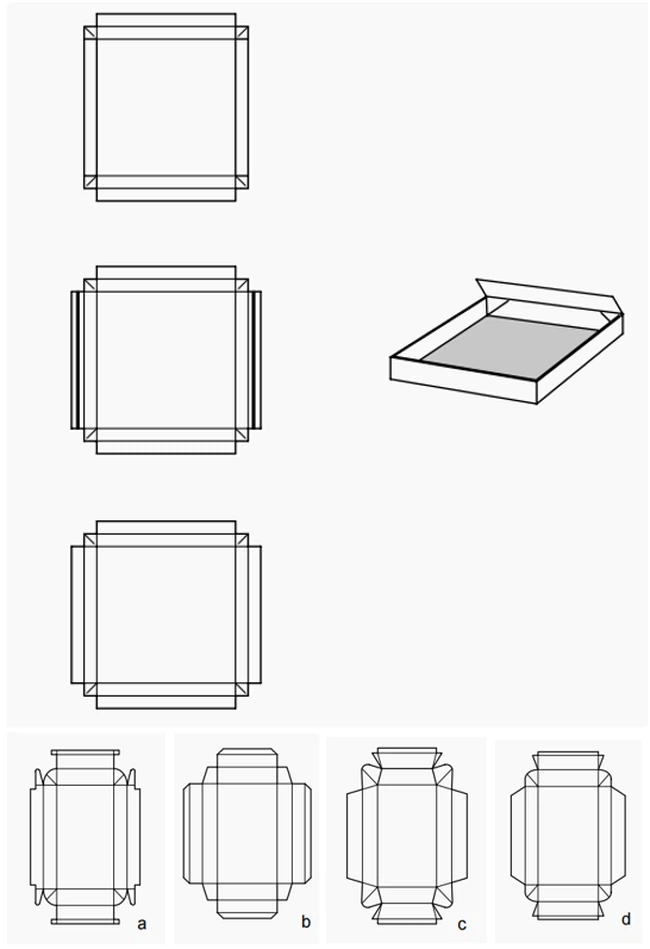

Box samples display:
Straight line box
Double sides box

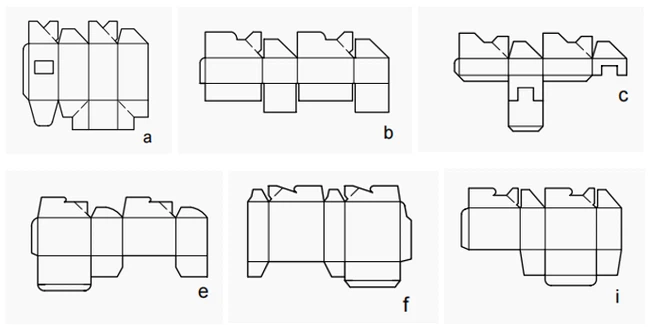

Lock bottom box
4-corner box
6- corner box
Packaging:
Delivery:
Hot Tags: high speed carton box folder gluer machine, China high speed carton box folder gluer machine manufacturers, suppliers, Flexo Folder Gluer Machine Straight Line, Carton Folder Gluer Machine, Automatic Folder Gluer Machine, Lock Bottom Folder Gluer High Speed, Corrugated Multifunctional Folder gluing Machine, Fully Automatic Servo Flute Laminating Machine
Technical parameter:
|
Model NO. |
GSF1100 |
After-sales Service |
Video Introduction |
|
Warranty |
1 Year |
Type |
Folder Gluer |
|
Automatic Grade |
Automatic High-Speed Folder Gluer |
Driven Type |
Electric |
|
Packaging |
Film |
HS Code |
8441309000 |
|
Compressed Air |
6 Bar |
Air Tank Capacity |
60L |
|
Total Power |
22Kw |
Air Compressor Capacity |
10m³/H |
|
Max Speed |
400M/Min |
Machine Size |
18*2.3*1.5M |
|
Machine Weight |
10.5T |
Blank Width |
1100mm |
|
Materials |
Paperboard/Abcef/Corrugated Board/Flat Mouth Box |
Trademark |
GUDE |
|
Transport Package |
Steel Plate |
Origin |
MingGuang,AnHui,China |
