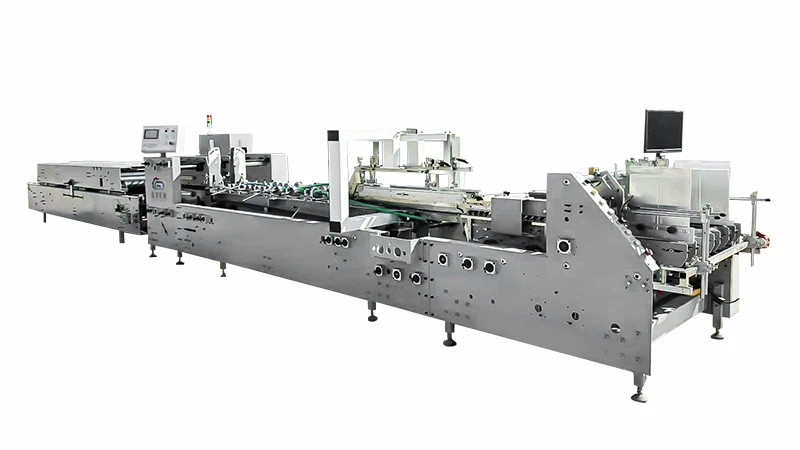

Machine introduction:
The straight line folder gluer machine can correct the skew phenomenon caused by paper output products and improve the accuracy of the products.
The straight line folder gluer machine is equipped with a set of correction devices on the left and right.
The special design of the lower glue barrel can accurately control the amount of glue and ensure that high-speed operation does not throw glue away. It is also very convenient to assemble, disassemble, clean and maintain.
There are 2 sets of gluing drums on the left and right sides of the lower gluing drum, which facilitates operation and saves time in adjusting the machine.
It can be adjusted in various styles, and the operation is quick and convenient, so that the box can be closed accurately. Comes with 2 sets of left and right folding knives.
Machine features:
1. The machine has short installation time and is suitable for both novice and experienced operators.
2. The machine is versatile and flexible and can meet the requirements of different customers.
3. Efficiency and reliability are the two major advantages of the multi-function folder gluer.
Product Parameters
|
Model |
GSF-850 C |
GSF-1100 C |
GSF-1250 C |
GSF-1450 C |
|
Paper Material |
Cardboard 200-800g, A/B/E Corrugated |
|||
|
Speed Max |
400m/min |
|||
|
Total Power |
17kw |
19kw |
21kw |
23kw |
|
Length*Width*Height |
14*2.0*1.5m |
14*2.3*1.5m |
14*2.5*1.5m |
14*2.7*1.5m |
|
Weight |
6.5T |
8.5T |
9.5T |
10.5T |
|
Compressor Air |
6 bar |
6 bar |
6 bar |
6 bar |
|
Air Compressor Capacity |
6m³/h |
6m³/h |
6m³/h |
6m³/h |
|
Air Tank Capacity |
40L |
40L |
40L |
40L |
Box specification:
 |
 |
 |
 |
 |
 |
Box samples display:
Straight line box
Packaging:
Delivery:
Hot Tags: straight line folder gluer machine, China straight line folder gluer machine manufacturers, suppliers, Automatic Crash Lock Bottom Folder Gluer Parts, Flexo Folder Gluer, Automatic Multifunctional Folder Gluer Machine, lock bottom folder gluer, Lock Bottom Folder Gluer High Speed, Automatic Flute Laminator Machine
Technical parameter:
|
Model NO. |
GSF 850C |
After-sales Service |
Video Introduction |
|
Warranty |
1 Year |
Type |
Folder Gluer |
|
Automatic Grade |
Automatic Folder Gluer |
Driven Type |
Electric |
|
Packaging |
Film |
HS Code |
8441309000 |
|
Compressed Air |
6 Bar |
Air Tank Capacity |
40L |
|
Total Power |
17Kw |
Air Compressor Capacity |
6m³/H |
|
Max Speed |
400M/Min |
Machine Size |
14*2.0*1.5M |
|
Machine Weight |
6.5T |
Blank Width |
850mm |
|
Materials |
Paperboard/Abcef/Corrugated Board |
Trademark |
GUDE |
|
Transport Package |
Steel Plate |
Origin |
MingGuang,AnHui,China |
