Hey there! As a supplier of Corrugated Box Folder Gluer Machines, I'm super excited to chat with you about the technical specs of these awesome machines.
Let's kick things off by understanding what a Corrugated Box Folder Gluer Machine does. Simply put, it's a piece of equipment that folds and glues corrugated cardboard to form boxes. These machines are crucial in the packaging industry, as they help in mass - producing high - quality boxes efficiently. If you're interested in learning more about the machines we offer, check out our Corrugated Box Folder Gluer Machine page.
1. Speed and Production Capacity

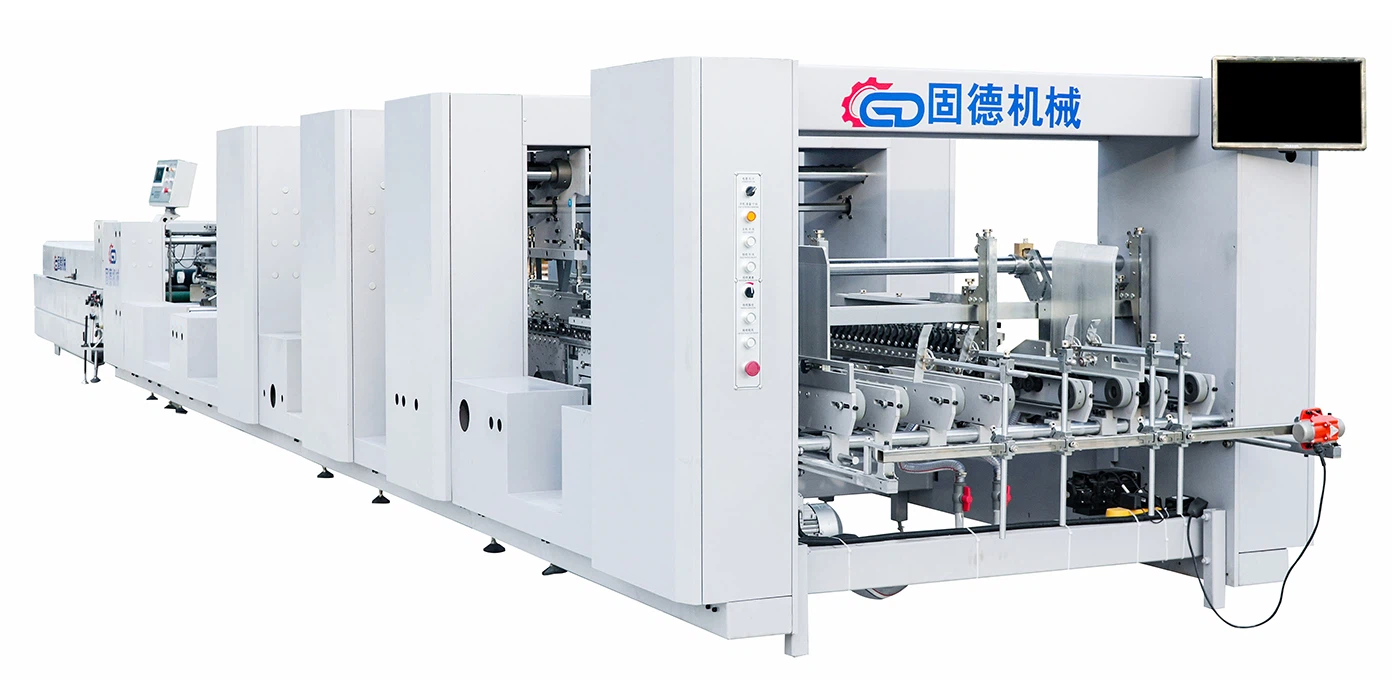

One of the most important technical specifications is the speed and production capacity of the machine. Different models can have varying speeds, which are usually measured in boxes per minute (bpm). For smaller businesses or those with lower production demands, a machine with a speed of around 20 - 50 bpm might be sufficient. These are often Semi Automatic Folder Gluer Machine, where some manual intervention is required.
On the other hand, large - scale manufacturers need machines that can churn out a high volume of boxes. High - end automatic machines can reach speeds of up to 300 bpm or even more. These Automatic Folding and Gluing Machine are fully automated, which means they can run continuously with minimal human supervision, increasing productivity significantly.
2. Paperboard Thickness and Size Compatibility
Corrugated boxes come in different sizes and thicknesses, and the folder gluer machine needs to be able to handle them all. Most standard machines can work with paperboard thicknesses ranging from 1.5mm to 8mm. This range allows for the production of various types of boxes, from small, lightweight ones to large, heavy - duty shipping boxes.
In terms of size, the machine should be able to accommodate different box dimensions. The minimum and maximum width and length of the boxes that the machine can handle are important specs. For example, a common minimum width might be around 100mm, while the maximum width could go up to 1200mm or more. The length can vary from 150mm to 2500mm, depending on the model. This flexibility ensures that the machine can meet the diverse needs of different customers.
3. Folding and Gluing Mechanisms
The folding and gluing mechanisms are the heart of the Corrugated Box Folder Gluer Machine. There are different types of folding methods, such as parallel folding, right - angle folding, and more complex lock - bottom folding.
Parallel folding is the simplest type, where the box is folded along parallel lines. Right - angle folding creates boxes with 90 - degree corners, which are very common in the packaging industry. Lock - bottom folding, on the other hand, is used to create boxes with a self - locking bottom, providing extra strength and stability.
When it comes to gluing, there are also different techniques. Some machines use glue rollers, which apply a thin layer of glue evenly on the cardboard. Others use glue nozzles, which can be more precise, especially for small - scale or detailed gluing jobs. The quality of the gluing is crucial, as it determines the strength and durability of the final box.
4. Control System
The control system of the machine plays a vital role in its operation. Modern Corrugated Box Folder Gluer Machines are equipped with advanced control systems, which can be either PLC (Programmable Logic Controller) - based or computer - controlled.
PLC - based systems are reliable and widely used. They allow operators to program different settings, such as folding angles, gluing amounts, and production speeds. With a PLC system, you can easily adjust the machine to produce different types of boxes without having to make major mechanical changes.
Computer - controlled systems take things a step further. They offer more advanced features, such as touch - screen interfaces, remote monitoring, and data logging. This means that operators can control the machine from a distance, monitor its performance in real - time, and analyze production data to improve efficiency.
5. Power Consumption
Power consumption is an important consideration, especially for businesses looking to reduce their operating costs. The power consumption of a Corrugated Box Folder Gluer Machine depends on its size, speed, and the complexity of its functions.
Smaller, semi - automatic machines generally consume less power, usually in the range of 2 - 5 kilowatts (kW). Larger, fully automatic machines with high speeds and advanced features can consume up to 15 kW or more. However, many modern machines are designed to be energy - efficient, using technologies such as variable frequency drives to optimize power usage.
6. Noise Level
The noise level of the machine can also be a concern, especially in a working environment. A noisy machine can cause discomfort to the operators and may even violate noise regulations in some areas.
Most modern Corrugated Box Folder Gluer Machines are designed to operate quietly. They use noise - reducing materials and advanced engineering techniques to keep the noise level down. A well - designed machine should have a noise level of around 70 - 80 decibels (dB), which is comparable to the noise level in a normal office environment.
7. Maintenance Requirements
Like any piece of industrial equipment, a Corrugated Box Folder Gluer Machine requires regular maintenance to ensure its smooth operation and longevity. Some of the common maintenance tasks include cleaning the glue system to prevent clogging, lubricating moving parts, and checking the alignment of the folding and gluing mechanisms.
The frequency of maintenance depends on the usage of the machine. For machines that run continuously, daily or weekly maintenance might be necessary. On the other hand, machines with lower usage can be maintained on a monthly or quarterly basis.
8. Safety Features
Safety is always a top priority when it comes to operating industrial machinery. A good Corrugated Box Folder Gluer Machine should be equipped with various safety features.
These can include emergency stop buttons, which allow operators to quickly stop the machine in case of an emergency. There should also be safety guards around moving parts to prevent accidental contact. Additionally, some machines have sensors that can detect if an operator's hand or other objects are in the danger zone and automatically stop the machine.
If you're in the market for a Corrugated Box Folder Gluer Machine, I hope this breakdown of the technical specifications has been helpful. We offer a wide range of machines to suit different needs and budgets. Whether you're a small - scale business or a large - scale manufacturer, we've got the right machine for you. If you have any questions or want to discuss your specific requirements, don't hesitate to reach out for a purchase negotiation.
References
- Packaging Machinery Manufacturers Institute. (2023). Technical Guidelines for Corrugated Box Folder Gluer Machines.
- Smith, J. (2022). The Complete Guide to Corrugated Box Production.
